Multiparameter Weather Sensor

1.Multiparameter Weather Sensor Product Introduction

Multiparameter Weather Sensor is a cost-effective sensor that accurately and reliably measures weather conditions and can be selected in any combination according to your meteorological needs.Shandong Fengtu Internet of Things Technology Co., Ltd., as a company specializing in the development, production and sale of micro-meteorological instruments, has been committed to the promotion and application of micro-meteorological instruments and meteorological environment solutions. With a complete production chain, a strong technical team and a comprehensive marketing team, the meteorological products we develop and produce, such as ultrasonic wind speed and direction instruments, five-element micro-meteorological instruments, six-element micro-meteorological instruments and small automatic weather stations, have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, marine vessels, aviation airports, bridges and tunnels, etc., with customers all over the country, and have achieved good social and economic benefits.

Compared with traditional micro-meteorological instruments, our products overcome the need for high-precision timers and avoid inaccurate measurements caused by sensor startup delays, demodulation circuit delays, and temperature changes.

The FT-WQX8 eight-element micro-meteorological instrument innovatively realizes the standard meteorological parameters (wind speed, wind direction, temperature, humidity, air pressure, PM2.5, PM10, noise) through a highly integrated structure, which can realize 24-hour continuous online monitoring of outdoor meteorological parameters and output the eight parameters to the user at one time through the digital communication interface. The product has a compact structure, beautiful and elegant appearance, and is highly integrated.

2. Multiparameter Weather Sensor Product Features

1. The top cover hides the ultrasonic probe to avoid interference from rain and snow accumulation and avoid being blocked by natural wind (utility model patent, patent number ZL 2020 2 3215713.X)☆

2. The principle is to emit a continuous frequency-variable ultrasonic signal and detect wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3. Wind speed, wind direction, temperature, humidity, air pressure, PM2.5, PM10, noise eight elements integrated (utility model patent, patent number ZL 2020 2 3215649.5)☆

4. Using advanced sensing technology, real-time measurement, no start-up wind speed☆

5. Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system

6. High integration, no moving parts, zero wear

7. Maintenance-free, no need for on-site calibration

8. ASA engineering plastics are used for outdoor applications without discoloration all year round.

9. The product design output signal is standardly equipped with RS485 communication interface (MODBUS protocol); 232, USB, Ethernet interface are optional, supporting real-time data reading☆

10. Optional wireless transmission module, minimum transmission interval 1 minute

11. The probe adopts a snap-on design, which solves the problem of looseness during transportation and installation.

3. Multiparameter Weather Sensor Technical Parameters

1. Wind speed: Measurement principle: ultrasonic, 0-60m/s (±0.1m/s), resolution: 0.01m/s; (invention patent, patent number: ZL 2021 1 0237536.5)

2. Wind direction: Measurement principle: ultrasonic, 0-360° (±2°); resolution: 1°; (invention patent, patent number ZL 2021 1 0237536.5)

3. Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate from Beijing Meteorological Bureau)

4. Air humidity: Measurement principle: capacitive, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate from Beijing Meteorological Bureau)

5. Atmospheric pressure: Measurement principle: piezoresistive, 300-1100hpa (±0.25%), resolution: 0.1hpa; (Calibration certificate from Beijing Meteorological Bureau)

6. PM2.5: 0-1000ug/m3 (±10%)

7. PM10: 0-1000ug/m3 (±10%)

8. Noise: 30-120dB (±1.5dB)

9. Power: 0.72W

10. Bluetooth: Built-in Bluetooth module, can connect to Android phones;

11. Wired transmission: 485 to USB, can be directly connected to the computer;

12. Data storage: no less than 500,000 records;

13. The manufacturing enterprise has ISO quality management system, environmental management system and occupational health management system certification☆

14. The manufacturer has a computer software registration certificate☆

15. The manufacturer is a 3A credit enterprise☆

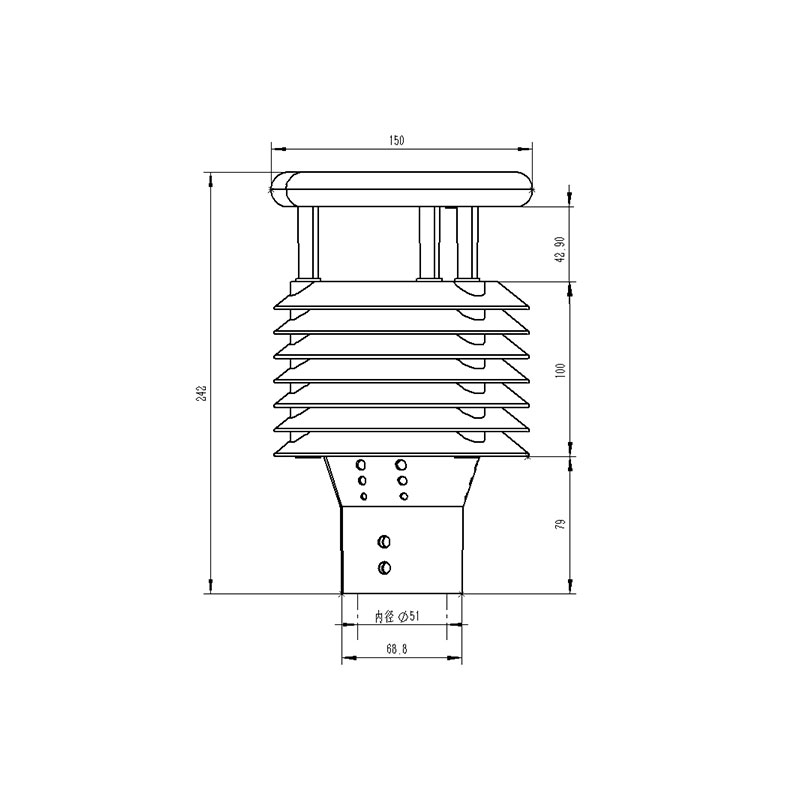

4. Multiparameter Weather Sensor Product Dimensions

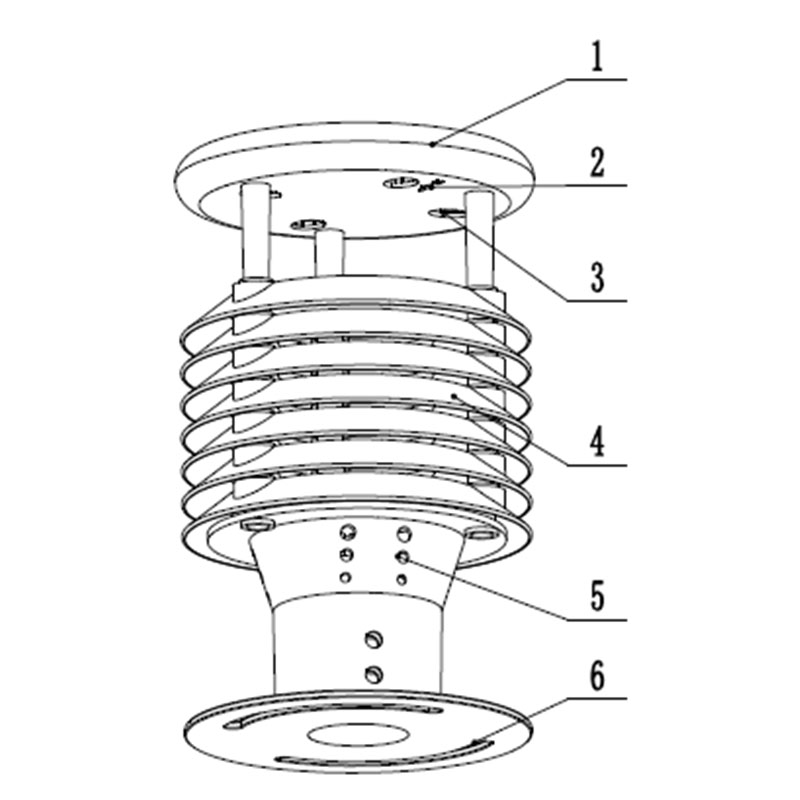

5. Multiparameter Weather Sensor Product Structure

1. Control circuit

2. North arrow

3. Ultrasonic probe

4. Venetian box PM2.5, PM10

5. Temperature, humidity, noise and air pressure monitoring location

6. Flange adapter

※This product can be equipped with an electronic compass function

6. Multiparameter Weather Sensor Product Wiring Definition
