FT - CZ5SVehicle - Mount Weather Station: Uniting Surveillance and Mobility for Environmental Monitoring

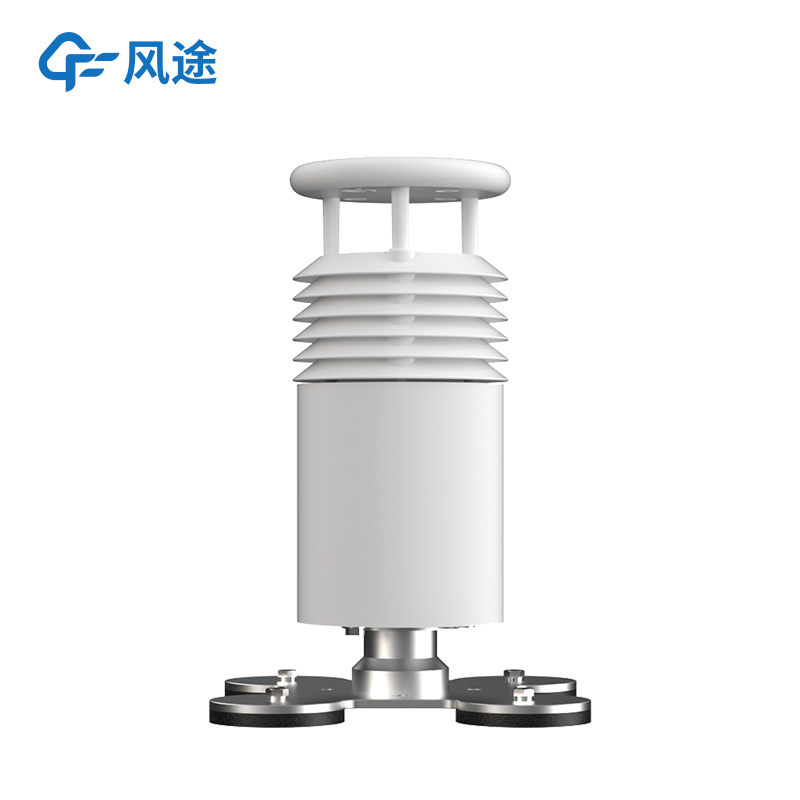

The FT-CZ5SVehicle-Mount Weather Station launched by Fengtu is a device that integrates video surveillance and meteorological observation, aiming to provide users with a more intuitive and comprehensive environmental monitoring experience.

This device is equipped with a five-element integrated sensor, which can monitor key meteorological parameters such as wind speed, wind direction, air temperature, humidity, and atmospheric pressure in real time. At the same time, it has three built-in 120° wide-angle cameras. Through the supporting upper computer software, users can view the video images and meteorological data synchronously on the PC side, directly correlating the visual information of the environment with the meteorological parameters, helping users to have a clearer understanding of the dynamic changes at the monitoring site.

The sensor of the device adopts a hidden ultrasonic probe design, effectively avoiding the interference of snow and rain accumulation and natural wind blockage, ensuring the accuracy of wind speed measurement. By transmitting continuous variable-frequency ultrasonic signals and measuring the relative phase change, it can capture the real wind speed in the range of 0 to 60m/s with an accuracy of up to ±0.1m/s. The device is also equipped with high-precision temperature, humidity, and air pressure sensors, which can accurately measure environmental parameters such as air temperature (range: -40°C to 60°C, accuracy: ±0.3°C).

To meet the need for rapid deployment, the bottom of the device is equipped with high-strength magnets (wrapped in rubber), which can be adsorbed on the roof of the vehicle without damage. A single person can complete the installation or disassembly in no more than 2 minutes, greatly improving portability and flexibility. The overall weight is controlled within 5kg, and it is equipped with a shock-absorbing carrying case, which is convenient for carrying and moving, and is suitable for the flexible monitoring needs in multiple scenarios.

In terms of positioning, the device has a built-in electronic compass that can automatically calibrate the direction. Combined with the Beidou and GPS dual-mode positioning technology, the highest accuracy can reach 0.1 meters, ensuring that users can always know the exact position of the device. The shell is made of imported ABS material, and the protection level reaches above IP65. It has excellent anti-salt spray and weather resistance performance and can operate stably for a long time in harsh environments. In addition, the device has a built-in large-capacity 12000mAh lithium battery, and the battery life is ≥24 hours. Even when the vehicle is not started or the external power supply is inconvenient, it can ensure the normal operation of the device.

The FT-CZ5SVehicle-Mount Weather Station integrates high-precision meteorological monitoring, real-time video surveillance, and convenient mobility, providing users with more efficient and accurate environmental data support. At the same time, it ensures simple operation and strong environmental adaptability, making it an ideal choice for scientific research, emergency monitoring, and daily use.
